Suitable for permanent & semi-permanent installs on either sealed or un-sealed surfaces. This lightweight modular structure is 12m wide and is extendable in length by 5m bays. Also available in a 3m leg height. 10m and 12m widths also have a hip end option.
It is simple to erect with no loose bolts and can easily be attached to buildings or used as a freestanding unit.
Manufactured onsite at our purpose built premises in Tauranga, New Zealand.
NZ engineering reports are available.
Fabric: All Baytex Marquees have a high tech lacquer surface coating for a smooth, glossy, dirt resistant finish. Fire retardant fabric specially treated to prevent moisture wicking. Choice of Ferrari Translucent or Blockout PVC in white or a choice of colours. High frequency welded for optimum strength, fabricated in NZ.
Hardware: Anodised alloy rail components for light weight strength and durability. High quality electro galvanised steel connectors ensure a long lasting, clean appearance. Powder coated alloy castings to minimise fabric damage. Premium NZ sourced.
Simple Set Up: Quick and easy installation with no loose bolts, pins or fasteners required.
Easy to Clean: The PVC surface can be readily cleaned with PH Neutral Baytex 'Sliktop'.
Manufacturing: CAD designed and computer cut for dimensional accuracy. Manufactured onsite at Baytex for the last 40 years.
Engineering Reports: Charges for initial and renewal certificates will apply.
All Alispans are supplied with PVC Roof, plain PVC Walling, poles, pegs, storm guys, roof bag, wall bag.

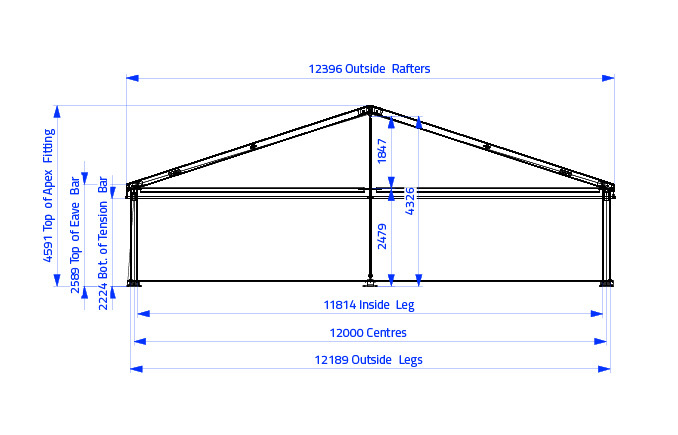

Roof Pitch | 18 degrees |
Main frame profile OD (MM) | 187x69x3.5mm Alibeam Extrusion |
Longest length (m) | 6.5 |
Leg height | 2.6m (also available on a 3m leg) |
Apex height | 4.573m |
Max wind speed rating | 100kph |
Standing | allow .75 sqm pp |
Buffet | allow 1 sqm pp |
Long Tables | allow 1 sqm pp |
Round tables | allow 1.5m sqm pp |
PVC roof & bags | |
PVC walling & bags | |
Frame | |
Set up tools |
Ferarri 502 colour available on request |
Colour | |
---|---|
Ferrari 502 Translucent White | + |
Ferrari 602 Blockout White | + |
