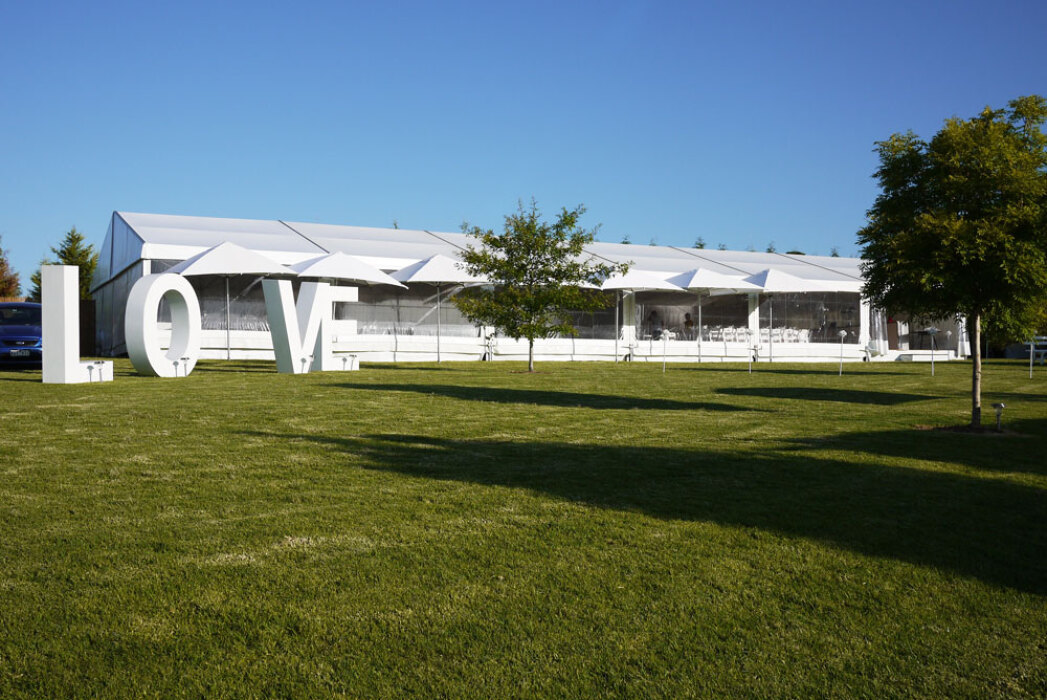

Alispan 15m Gable End

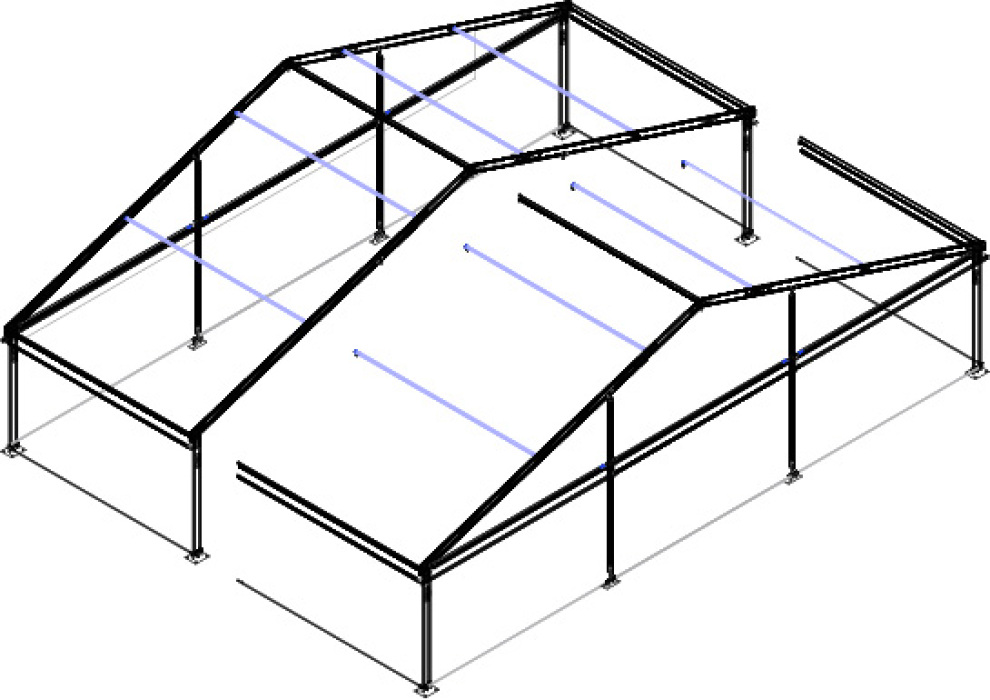

Suitable for permanent & semi-permanent installs on either sealed or un-sealed surfaces. This lightweight modular structure is 15m wide and is extendable in length by 5m bays. Also available in a 3m leg height. 10m and 12m widths also have a hip end option.

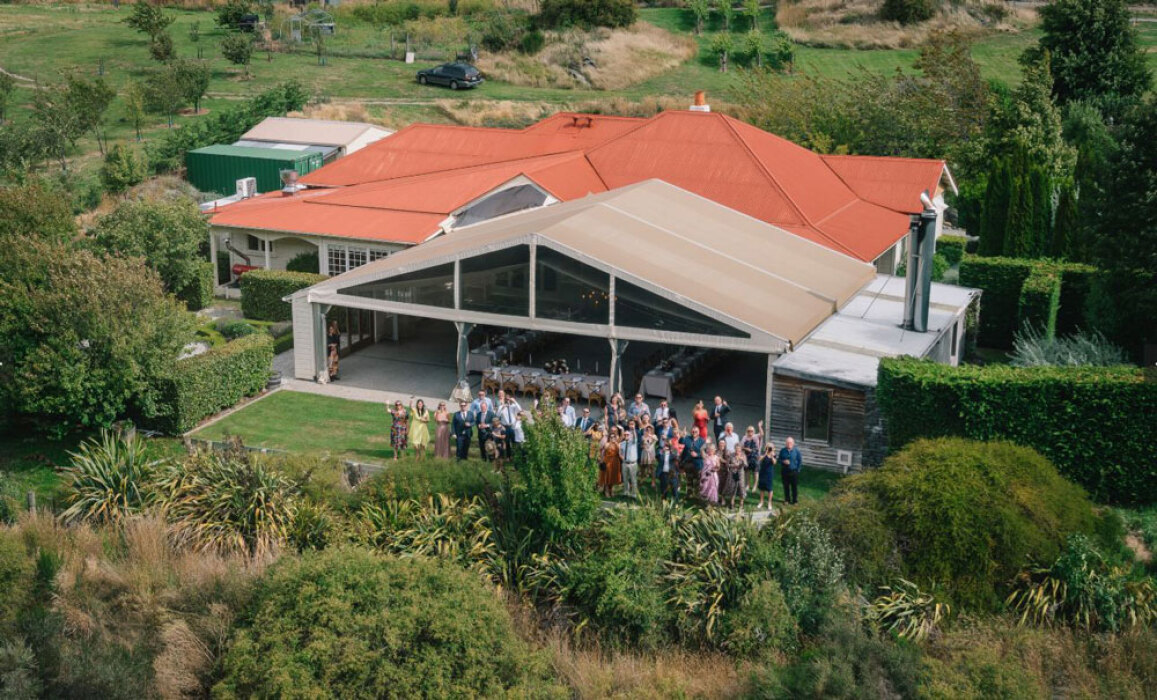

It is simple to erect with no loose bolts and can easily be attached to buildings or used as a freestanding unit.

Manufactured onsite at our purpose built premises in Tauranga, New Zealand.

NZ engineering reports are available.

Fabric: All Baytex Marquees have a high tech lacquer surface coating for a smooth, glossy, dirt resistant finish. Fire retardant fabric specially treated to prevent moisture wicking. Choice of Ferrari Translucent or Blockout PVC in white or a choice of colours. High frequency welded for optimum strength, fabricated in NZ.

Hardware: Anodised alloy rail components for light weight strength and durability. High quality electro galvanised steel connectors ensure a long lasting, clean appearance. Powder coated alloy castings to minimise fabric damage.

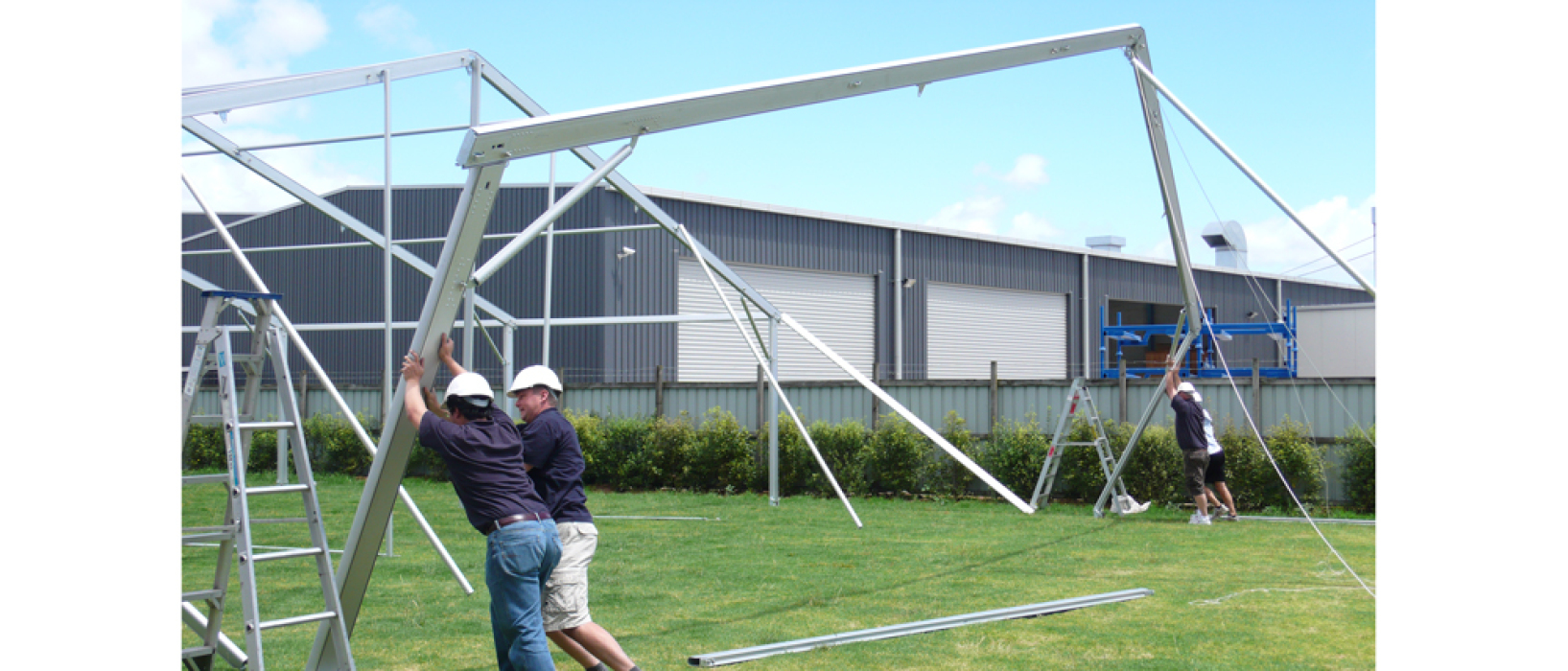

Simple Set Up: Quick and easy installation with no loose bolts, pins or fasteners required.

Easy to Clean: The PVC surface can be readily cleaned with PH Neutral Baytex 'Sliktop'.

Manufacturing: CAD designed and computer cut for dimensional accuracy. Manufactured onsite at Baytex for the last 40 years.

Engineering Reports: Charges for initial and renewal certificates will apply.

All Alispans are supplied with PVC Roof, plain PVC Walling, poles, pegs, storm guys, roof bag, wall bag.

Specs and information
Roof Pitch 18 degrees
Main frame profile OD (MM) 187x69x3.5mm Alibeam Extrusion
Longest length (m) 8.08
Leg height 2.6m
Apex height 5.078m
Max wind speed rating 100kph
Capacity Guide
Standing allow .75 sqm pp
Buffet allow 1 sqm pp
Long Tables allow 1 sqm pp
Round tables allow 1.5m sqm pp
Included with your marquee
PVC roof & bags
PVC walling & bags
Frame
Set up tools
