Clipframe 5m

Available in 5m wide x 5m increments

Designed for simplicity, style and flexibility, this 5m wide modular aluminium frame marquee is extendable in length by 5m bays in Gable ends. This 5m Series is interchangeable with our 10m Series as it uses the same profile and parts.

The Clipframe has earned a reputation of being the fastest erecting marquee in the business with no loose bolts pins or fasteners.

Manufactured onsite at our purpose built premises in Tauranga, New Zealand.

NZ engineering reports are available.

Fabric: All Baytex Marquees have a high tech lacquer surface coating for a smooth, glossy, dirt resistant finish. Fire retardant fabric specially treated to prevent moisture wicking. Choice of Ferrari Translucent or Blockout PVC in white or a choice of colours. High frequency welded for optimum strength, fabricated in NZ.

Hardware: Anodised alloy rail components for light weight strength and durability. High quality electro galvanised steel connectors ensure a long lasting, clean appearance. The 5m & 10m have a unique eave tensioning system that applies an even pressure smoothing out the roof to a sleek finish.

Simple Set Up: Quick and easy installation with no loose bolts, pins or fasteners required. The Tension System is applied via the fast acting screw-thread mechanism.

Image Projection: The Clipframe is excellent for promotional use. Project your innovative image, unique logo and identity to the public with this strong waterproof and wind resistant marquee.

Easy to Clean: The PVC surface can be readily cleaned with PH Neutral Baytex 'Sliktop'.

Manufacturing: CAD designed and computer cut for dimensional accuracy. Manufactured onsite at Baytex for the last 40 years.

Engineering Reports: Charges for initial and renewal certificates will apply.

All Clipframes are supplied with  PVC Roof, plain PVC Walling, pegs, storm guys, roof bag, wall bag.

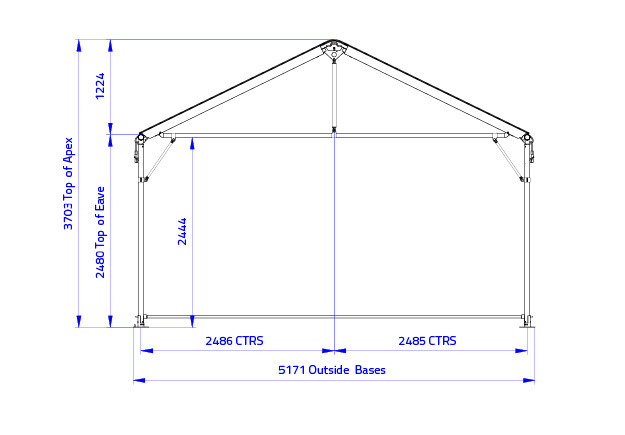

Specs and information
Roof Pitch 26 degrees
Main frame profile OD (MM) 65
Leg height 2.4m
Max wind speed rating 100kph
Capacity Guide
Included with your marquee
5m Gable Ends Pair PVC
5m x 5m Mid Roof PVC (with Bags)
5m x 2.4m Plain Walls
Wall Bag
10m x 5m Gable End Hardware 2.4m Leg
10m x 5m Mid Section Hardware
Walling Bars
Marquee Pegs
Ratchet Straps
Erecting Tool Set
