Available 6m wide x up to 99m long in 3m bays
Designed for simplicity, style and flexibility, this 6m wide modular aluminium frame marquee is extendable in length by 3m bays with a choice of Hip or Gable ends.
The Clipframe has earned a reputation of being the fastest erecting marquee in the business with no loose bolts pins or fasteners.
Manufactured onsite at our purpose built premises in Tauranga, New Zealand.
NZ engineering reports are available.
Fabric: All Baytex Marquees have a high tech lacquer surface coating for a smooth, glossy, dirt resistant finish. Fire retardant fabric specially treated to prevent moisture wicking. Choice of Ferrari Translucent or Blockout PVC in white or a choice of colours. High frequency welded for optimum strength, fabricated in NZ.
Hardware: Anodised alloy rail components for light weight strength and durability. High quality electro galvanised steel connectors ensure a long lasting, clean appearance.
Simple Set Up: Quick and easy installation with no loose bolts, pins or fasteners required. Pull through PVC roof panels slide in after the frame has been erected.
Image Projection: The Clipframe is excellent for promotional use. Project your innovative image, unique logo and identity to the public with this strong waterproof and wind resistant marquee.
Easy to Clean: The PVC surface can be readily cleaned with PH Neutral Baytex 'Sliktop'.
Manufacturing: CAD designed and computer cut for dimensional accuracy. Manufactured onsite at Baytex for the last 40 years.
Engineering Reports: Charges for initial and renewal certificates will apply.
All Clipframes are supplied with PVC Roof, plain PVC Walling, pegs, storm guys, roof bag, wall bag.

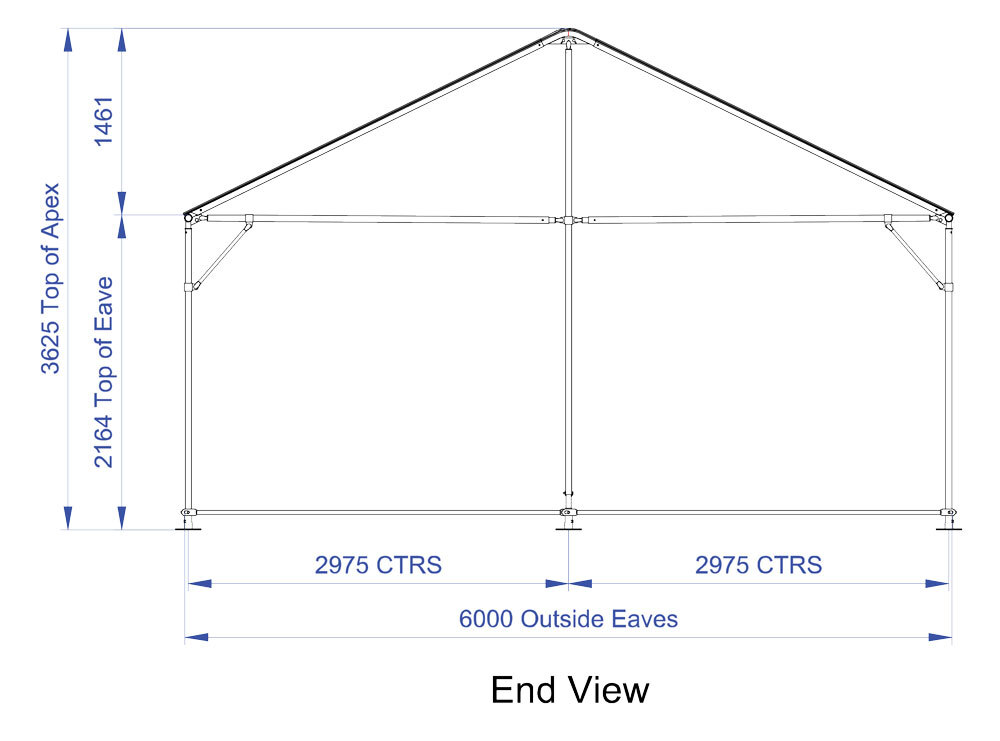

Roof Pitch | 26 degrees |
Main frame profile OD (MM) | 50mm, channel tube extrusion |
Longest length (m) | 4.25 |
Leg height | 2.1m (available on request as a 2.4m) |
Apex height | 3.62m (3.92m) |
Max wind speed rating | 80kph |
6m Gable Ends Pair PVC | |
6m x 3m Mid Roof PVC (with Bags) | |
6m x 2.1m Plain Walls | |
Wall Bags | |
6m x 6m Gable End Hardware 2.1m Leg | |
6m x 3m Mid Section Hardware | |
Walling Bars | |
Marquee Pegs | |
Ratchet Straps | |
Erecting Tool Kit |
Ferarri 502 colour available on request |
Colour | |
---|---|
Ferrari 502 Translucent White | + |
Ferrari 602 Blockout White | + |
