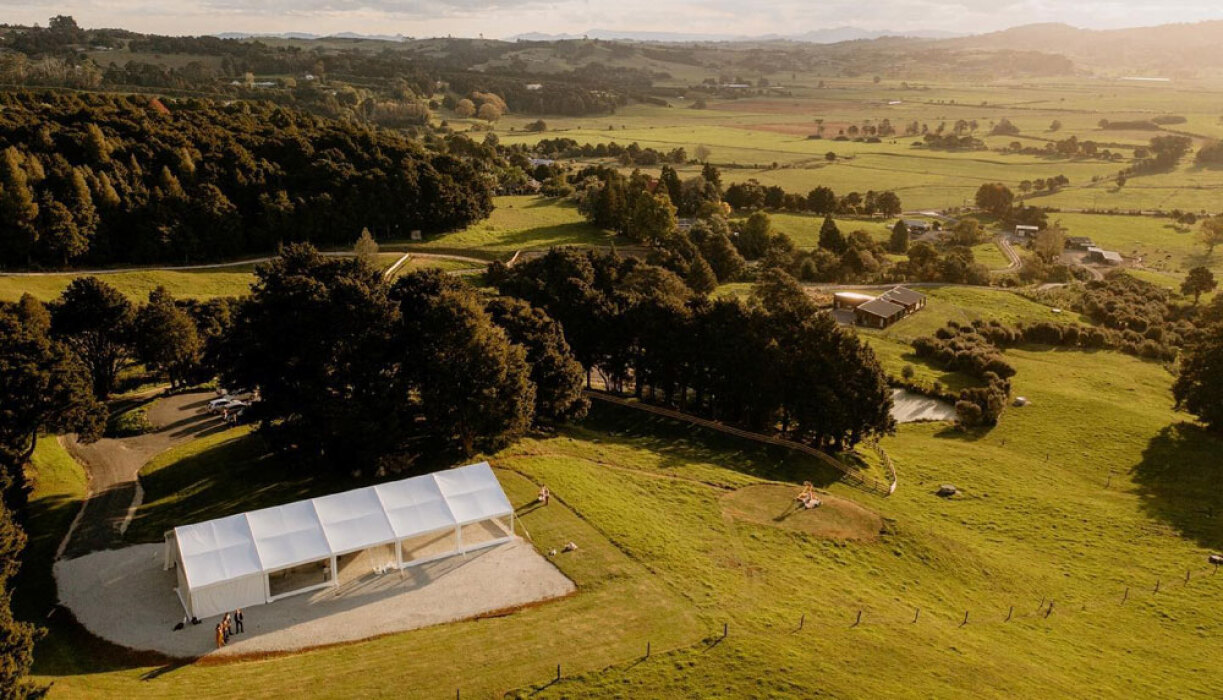

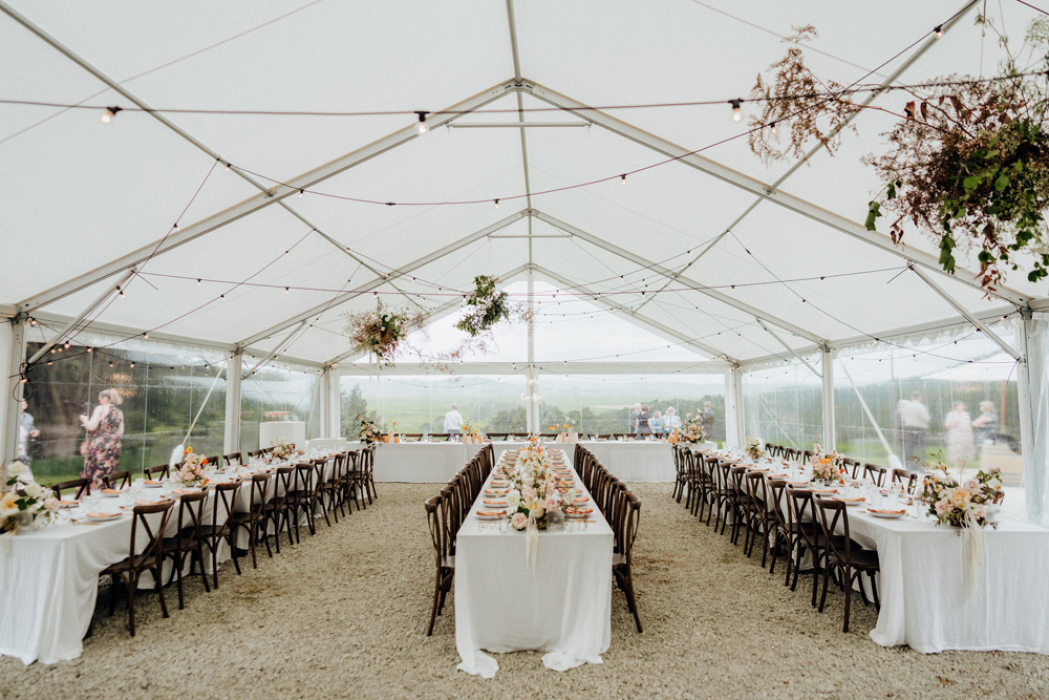

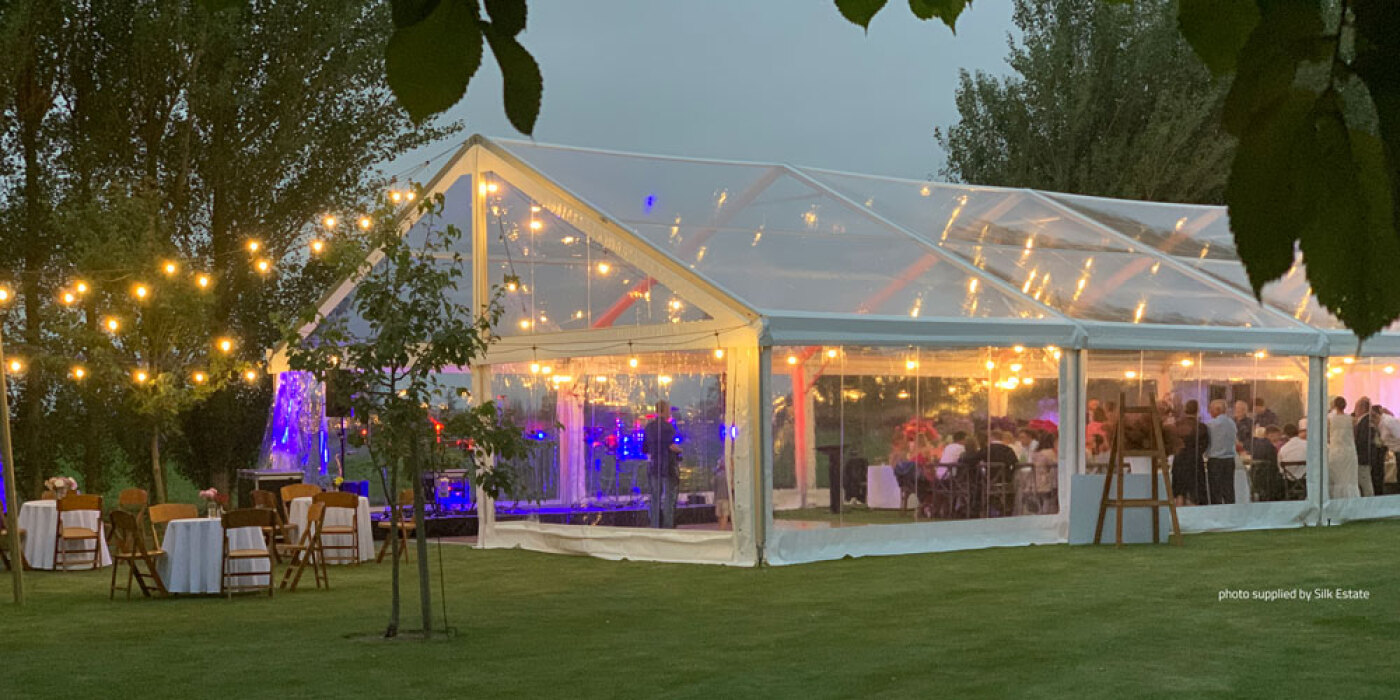

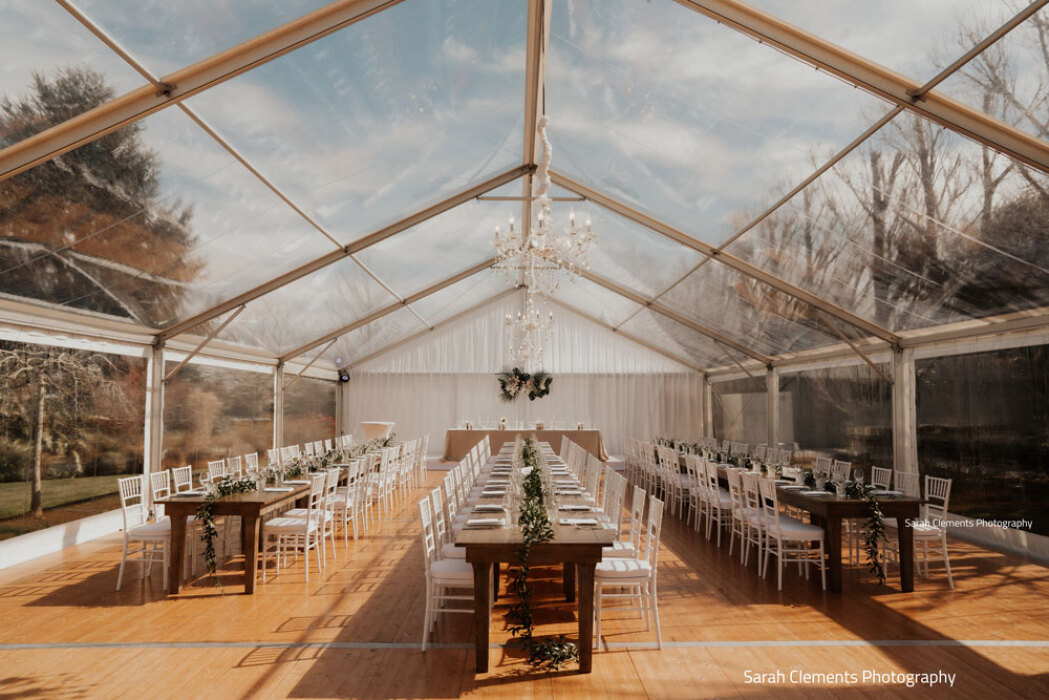

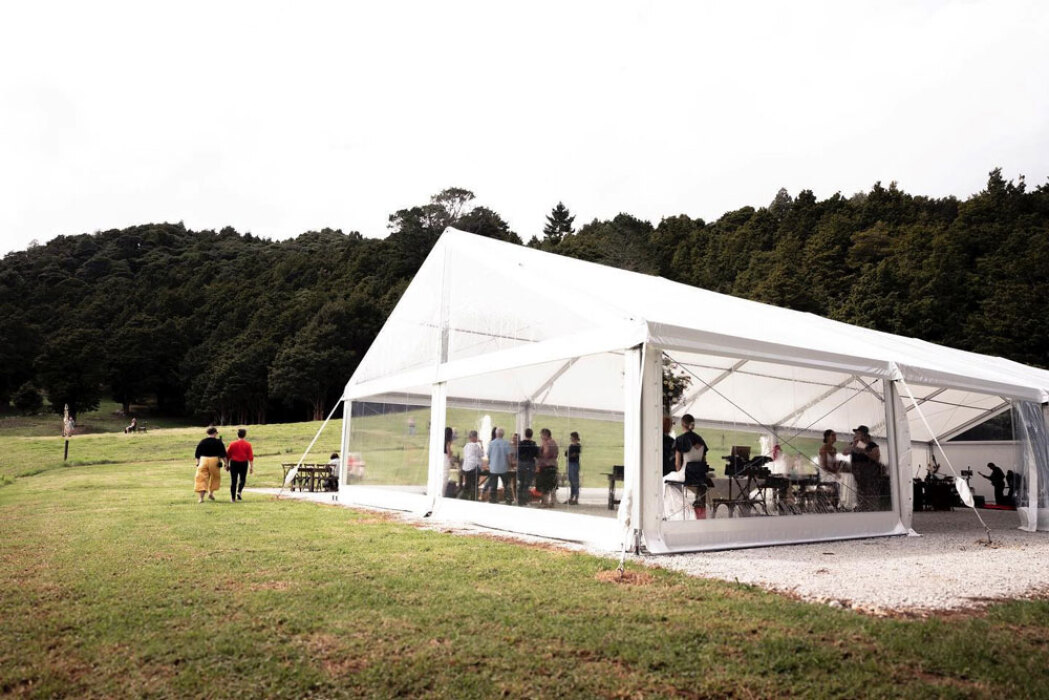

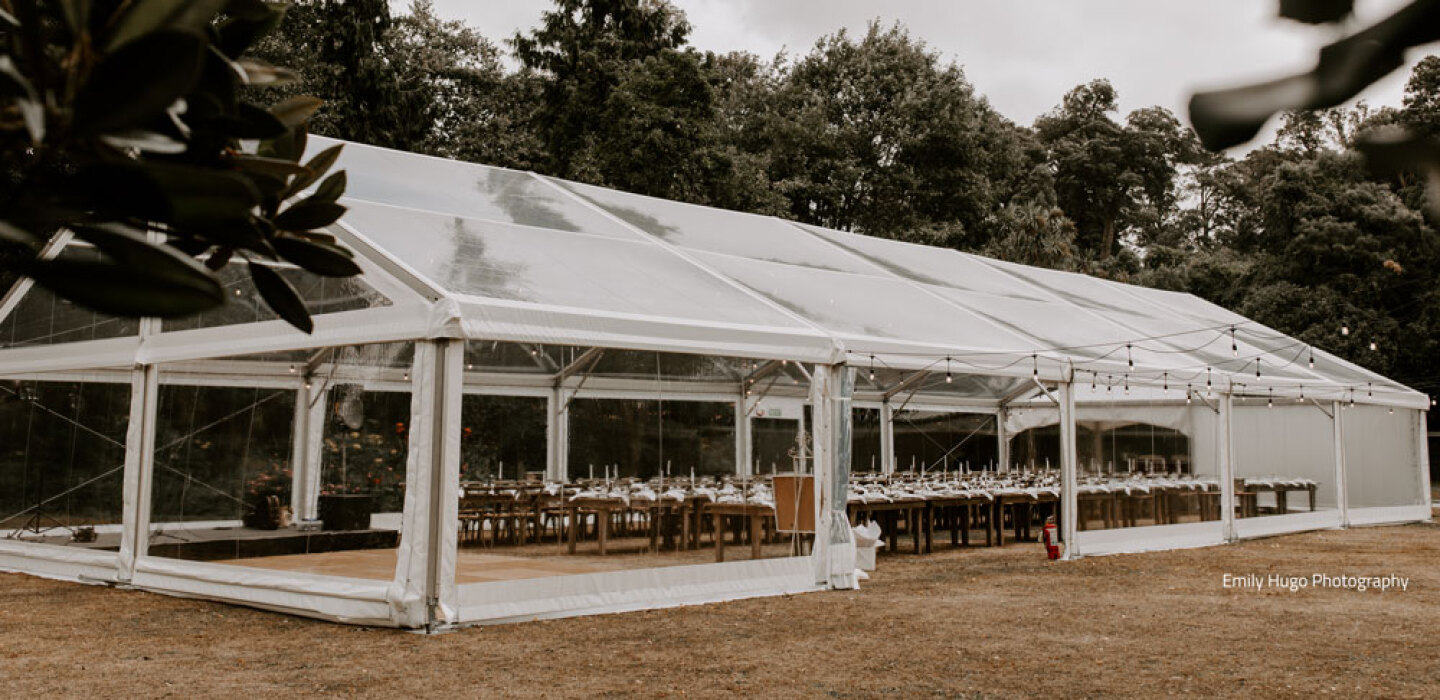

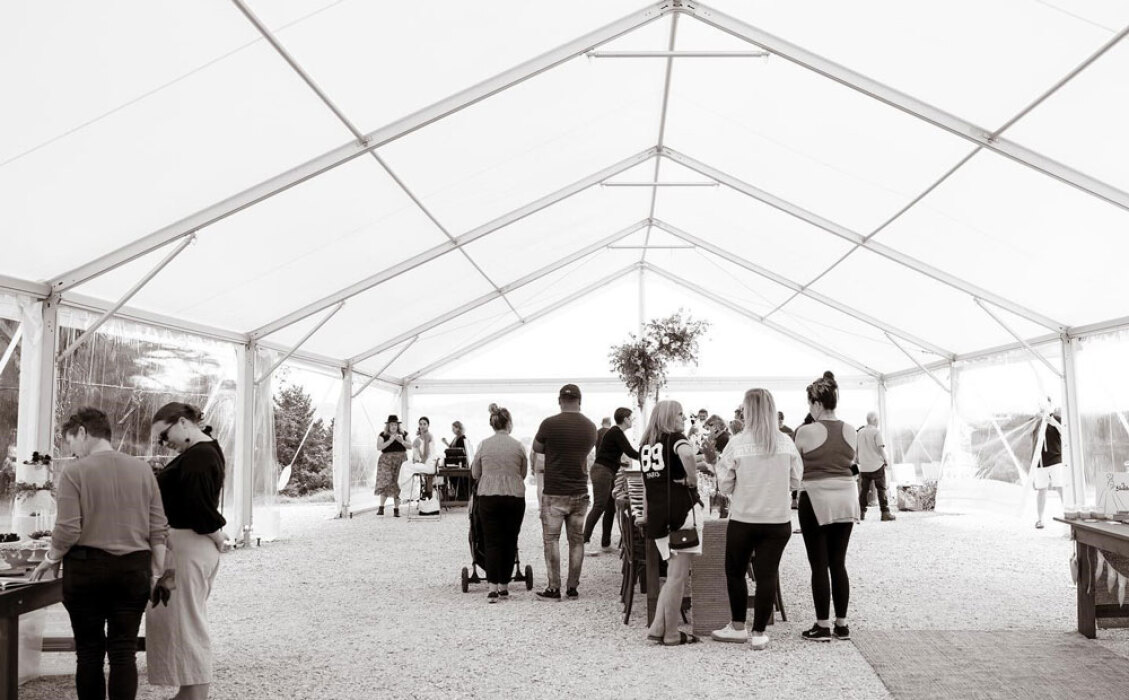

SQ Frame Gable End

Based on the simplicity of the Clipframe, the SQ Frame is designed with a square 4-track profile. Walls slide easily along a track system. Smooth or gathered liners can be easily installed into the bottom track to complete the look.

Designed for simplicity, style and flexibility, this 10m wide modular aluminium frame marquee is extendable in length by 5m bays with a gable end.

Manufactured onsite at our purpose built premises in Tauranga, New Zealand.

NZ engineering reports are available.

Fabric: All Baytex Marquees have a high tech lacquer surface coating for a smooth, glossy, dirt resistant finish. Fire retardant fabric specially treated to prevent moisture wicking. Choice of Ferrari Translucent, Blockout PVC in white, Clear PVC or a choice of colours. High frequency welded for optimum strength, fabricated in NZ.

Hardware: Anodised alloy rail components for light weight strength and durability. High quality electro galvanised steel connectors ensure a long lasting, clean appearance. Can be annodised black or powdercoated white.

Simple Set Up: Quick and easy installation with no loose bolts, pins or fasteners required. The Tension System is applied via the fast acting screw-thread mechanism.

Image Projection: Project your innovative image, unique logo and identity to the public with this strong waterproof and wind resistant marquee.

Easy to Clean: The PVC surface can be readily cleaned with PH Neutral Baytex 'Sliktop'.

Manufacturing: CAD designed and computer cut for dimensional accuracy. Manufactured onsite at Baytex for the last 40 years.

Engineering Reports: Charges for initial and renewal certificates will apply.

All SQ Frame Structures are supplied with PVC Roof, plain PVC Walling, pegs, storm guys, roof bag, wall bags.

Specs and information
Roof Pitch 26 degrees
Leg height 2.6m
Apex height 5.059m
Max wind speed rating up to 108kph
Capacity Guide
Included with your marquee
10m Gable Ends Pair PVC
10m x 5m Mid Roof PVC (with Bags)
5m x 2.6m Plain Walls
Wall Bag
10m x 10m Gable End Hardware 2.6m Leg
10m x 5m Mid Section Hardware
Walling Bars
Marquee Pegs
Ratchet Straps
Erecting Tool Set
