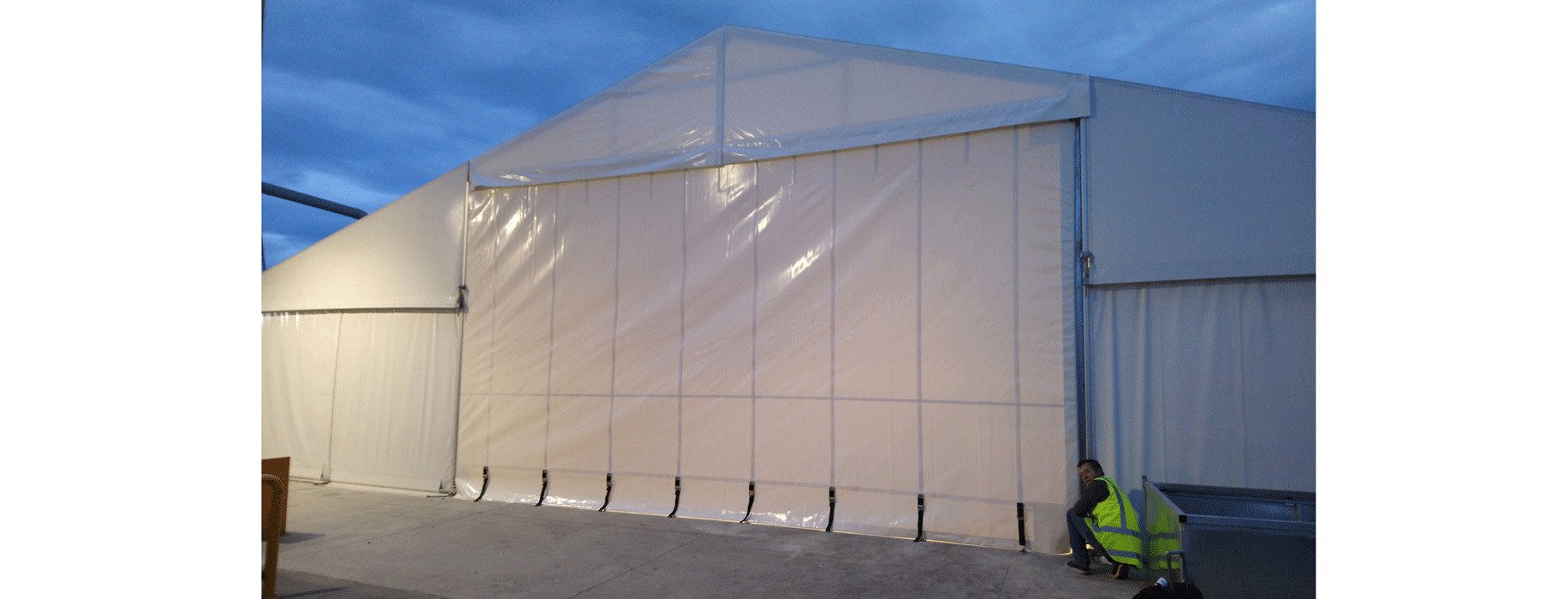

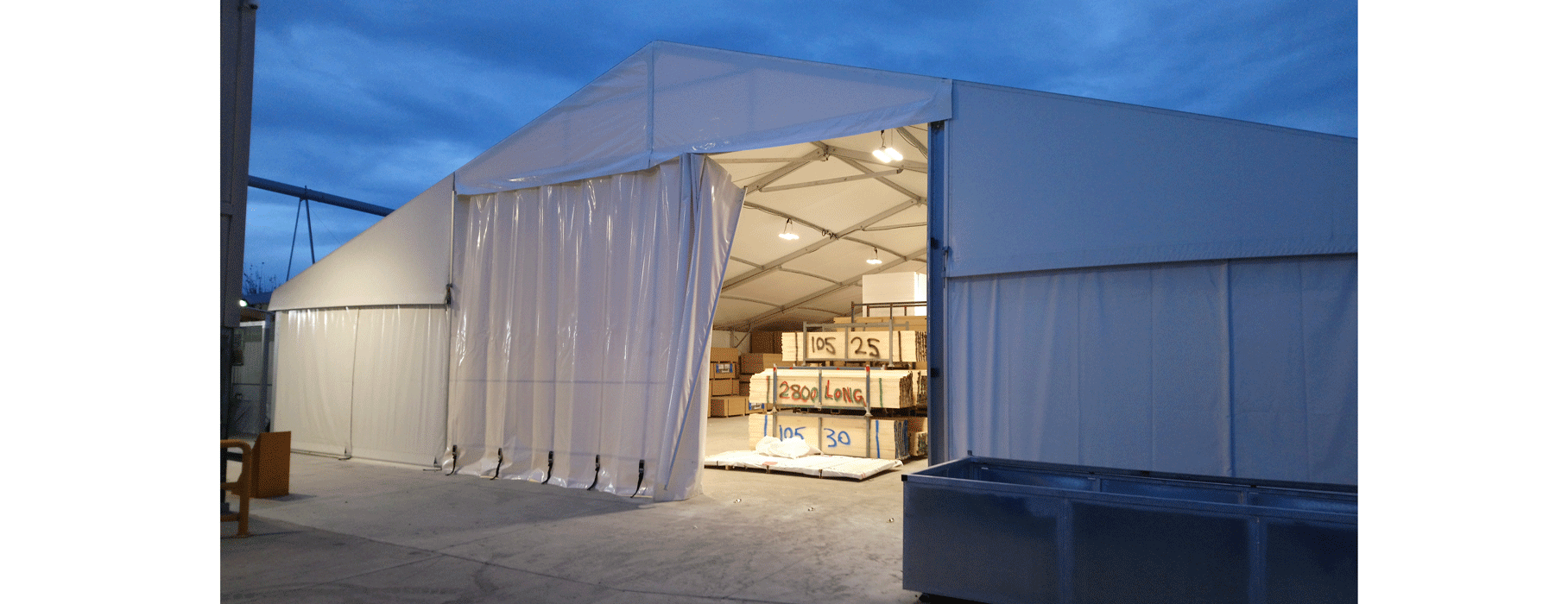

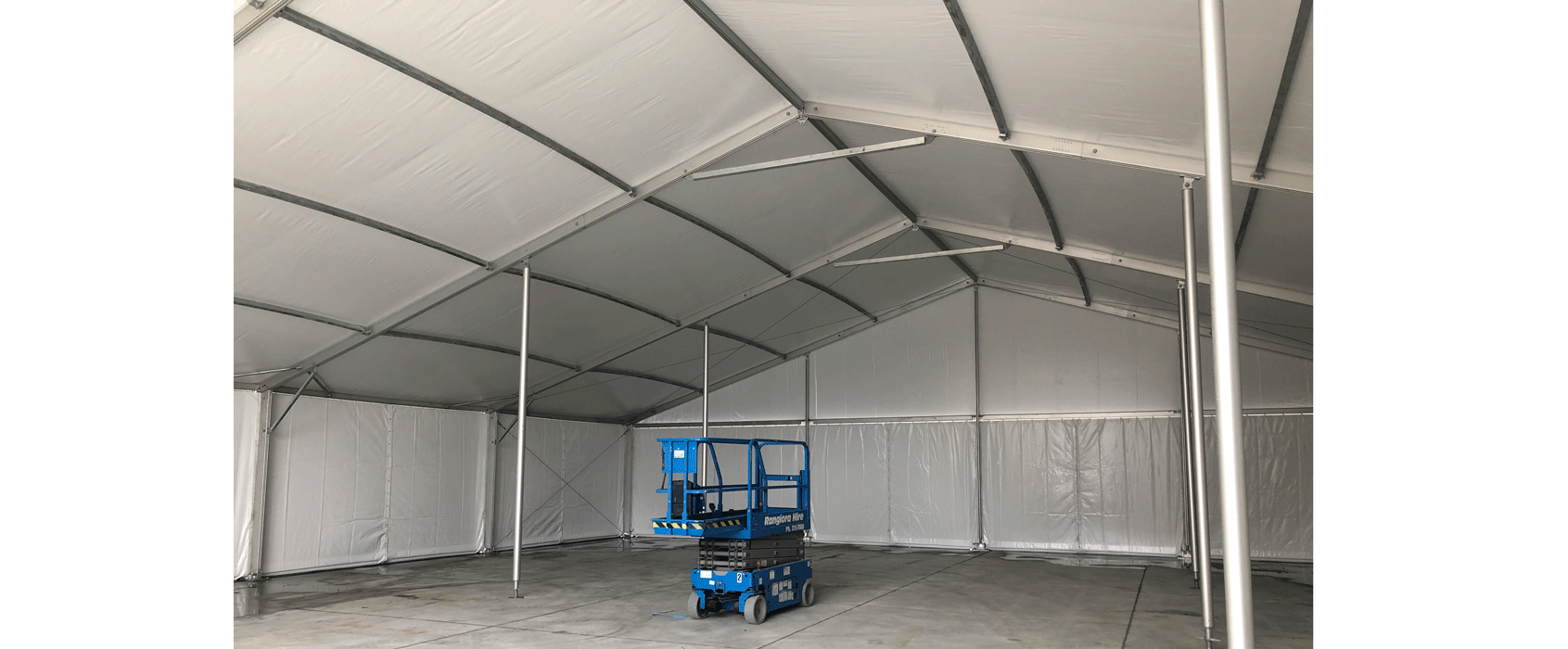

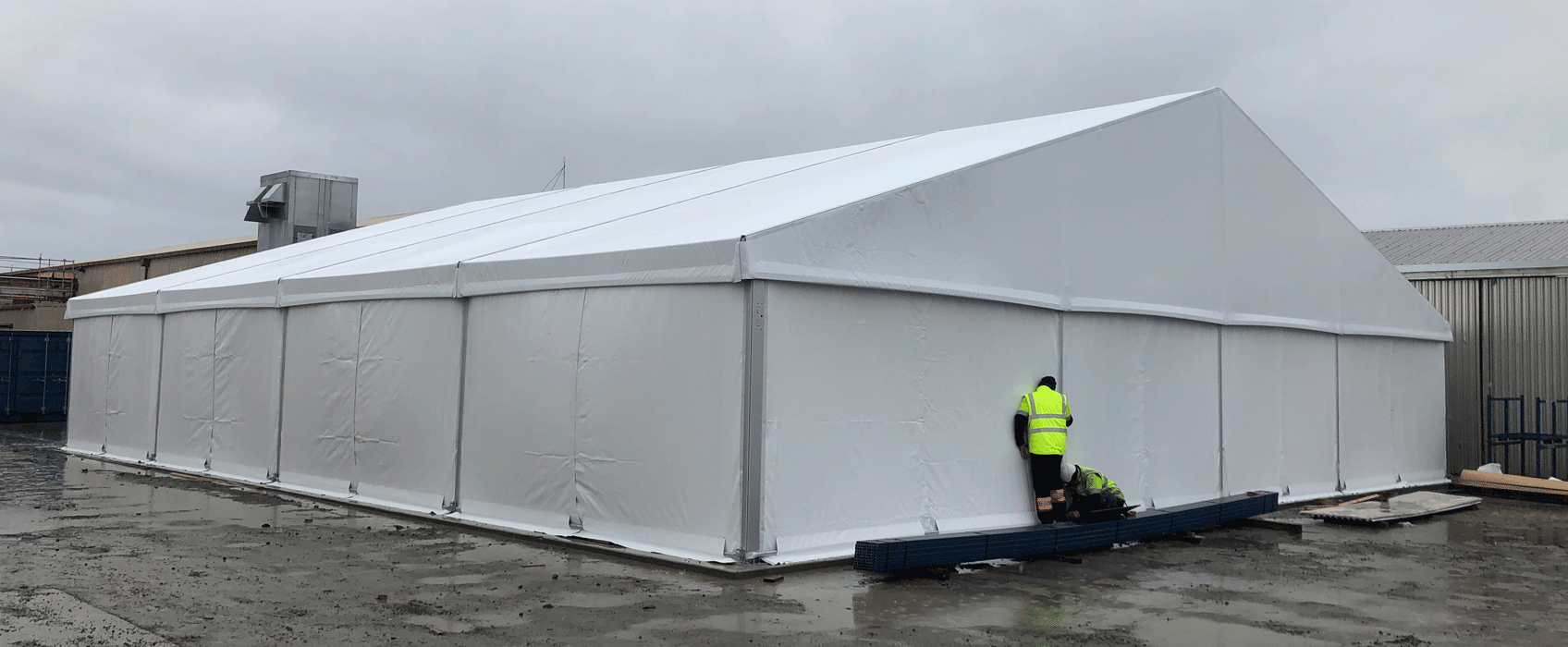

Alispan Warehousing

Suitable for semi-permanent installs on either sealed or un-sealed surfaces. This lightweight structure comfortably spans from 10m-18m and extends to any length in 5m modules. Arched purlin system to provide a taut fit and noise reduction. All walls retractable with high clearance on the entrance and wide width curtain wall for truck access.

It is simple to erect with no loose bolts. Can have options of hard doors and walling.

Manufactured onsite at our purpose built premises in Tauranga, New Zealand.

NZ engineering reports are available.

Fabric: All Baytex Marquees have a high tech lacquer surface coating for a smooth, glossy, dirt resistant finish. Fire retardant fabric specially treated to prevent moisture wicking. Choice of Ferrari Translucent or Blockout PVC in white or a choice of colours. High frequency welded for optimum strength, fabricated in NZ.

Hardware: Anodised alloy rail components for light weight strength and durability. High quality electro galvanised steel connectors ensure a long lasting, clean appearance. Powder coated alloy castings to minimise fabric damage. Premium NZ sourced.

Simple Set Up: Quick and easy installation with no loose bolts, pins or fasteners required.

Easy to Clean: The PVC surface can be readily cleaned with PH Neutral Baytex 'Sliktop'.

Manufacturing: CAD designed and computer cut for dimensional accuracy. Manufactured onsite at Baytex for the last 40 years.

Engineering Reports: PS1 engineering design report to B1 specification provided.

Specs and information
Roof Pitch 18 degrees
Main frame profile OD (MM) 187x69x3.5mm Alibeam Extrusion
Max wind speed rating 100kph
Capacity Guide
Included with your marquee
PVC Roof
PVC Walling
Frame
Pegs (if required)
