Clipframe 10m Gable End

Download Specs

Available 10m wide x up to 100m long in 5m Bays

Designed for simplicity, style and flexibility, this 10m wide modular aluminium frame marquee is extendable in length by 5m bays with a choice of Hip or Gable ends. We have also introduced a curved apex to give a contemporary look.

The Clipframe has earned a reputation of being the fastest erecting marquee in the business with no loose bolts pins or fasteners.

Manufactured onsite at our purpose built premises in Tauranga, New Zealand.

NZ engineering reports are available.

Fabric: All Baytex Marquees have a high tech lacquer surface coating for a smooth, glossy, dirt resistant finish. Fire retardant fabric specially treated to prevent moisture wicking. Choice of Ferrari Translucent or Blockout PVC in white or a choice of colours. High frequency welded for optimum strength, fabricated in NZ.

Hardware: Anodised alloy rail components for light weight strength and durability. High quality electro galvanised steel connectors ensure a long lasting, clean appearance.

Simple Set Up: Quick and easy installation with no loose bolts, pins or fasteners required. The Tension System is applied via the fast acting screw-thread mechanism.

Image Projection: The Clipframe is excellent for promotional use. Project your innovative image, unique logo and identity to the public with this strong waterproof and wind resistant marquee.

Easy to Clean: The PVC surface can be readily cleaned with PH Neutral Baytex 'Sliktop'.

Manufacturing: CAD designed and computer cut for dimensional accuracy. Manufactured onsite at Baytex for the last 50 years.

Engineering Reports: Charges for initial and renewal certificates will apply.

All Clipframes are supplied with  PVC Roof, plain PVC Walling, pegs, storm guys, roof bag, wall bag.

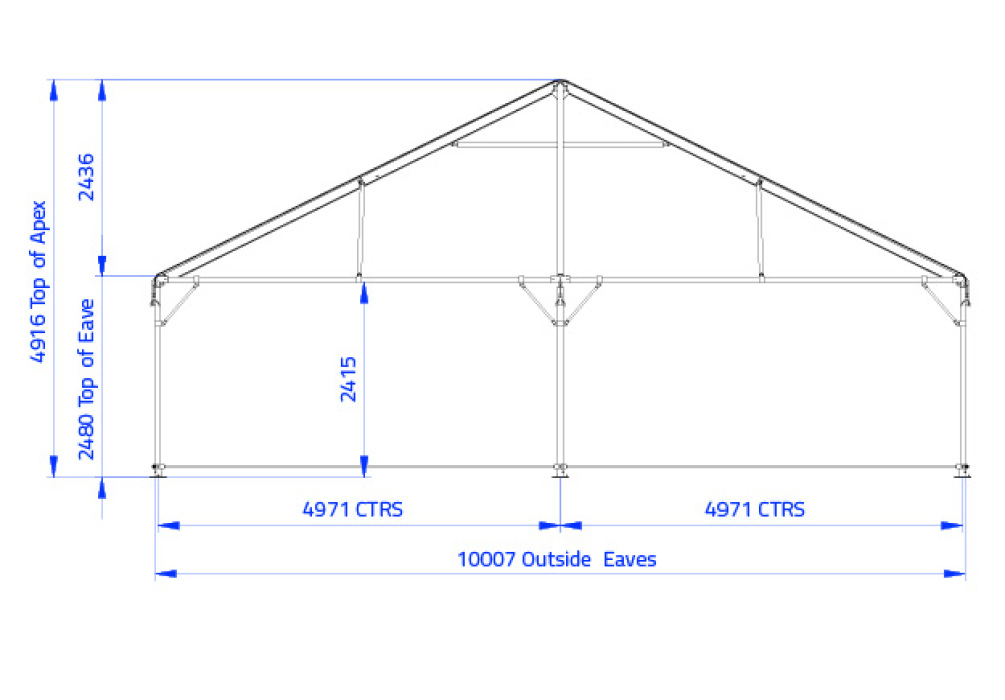

Specs and information
Roof Pitch 26 degrees
Main frame profile OD (MM) 65
Longest length (m) 5.85
Leg height 2.4m
Apex height 4.916m
Max wind speed rating 80kph
Capacity Guide
Included with your marquee
10m Gable Ends Pair PVC
10mx5m Mid Section in bag
5m x 2.4m Plain Walls
Wall Bags
10m x 10m Gable End Hardware 2.4m Leg
Walling Bars
Marquee Pegs
Ratchet Straps
Erecting Tool Set
