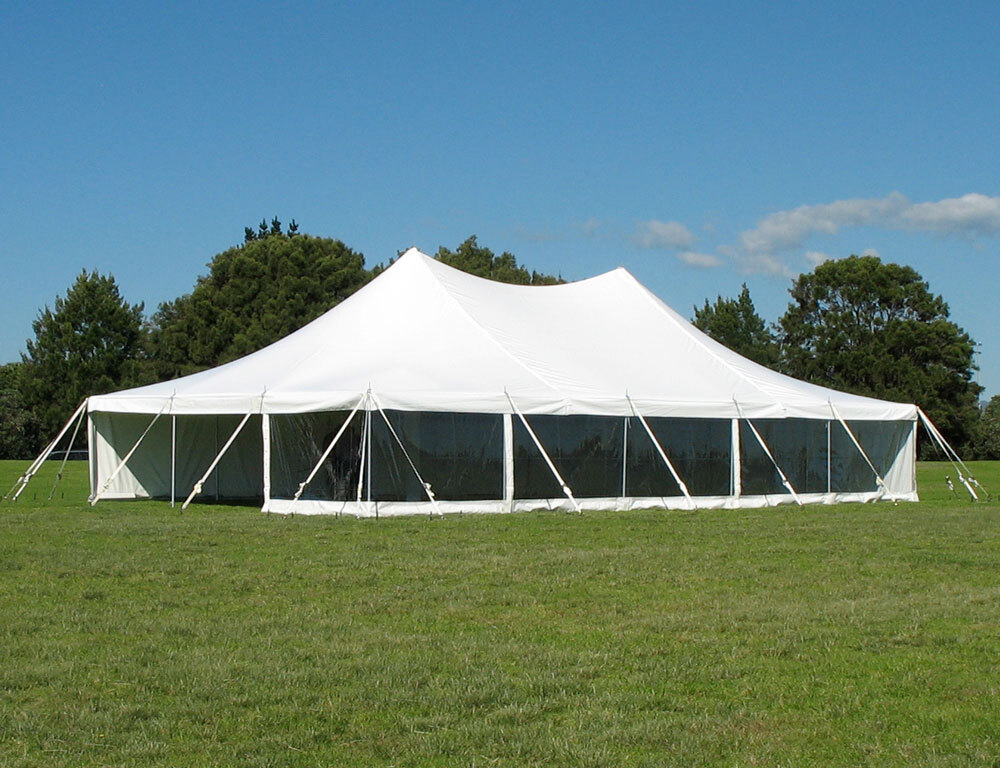

Electron 9m Series

Available 9m wide x 6m Bays + long

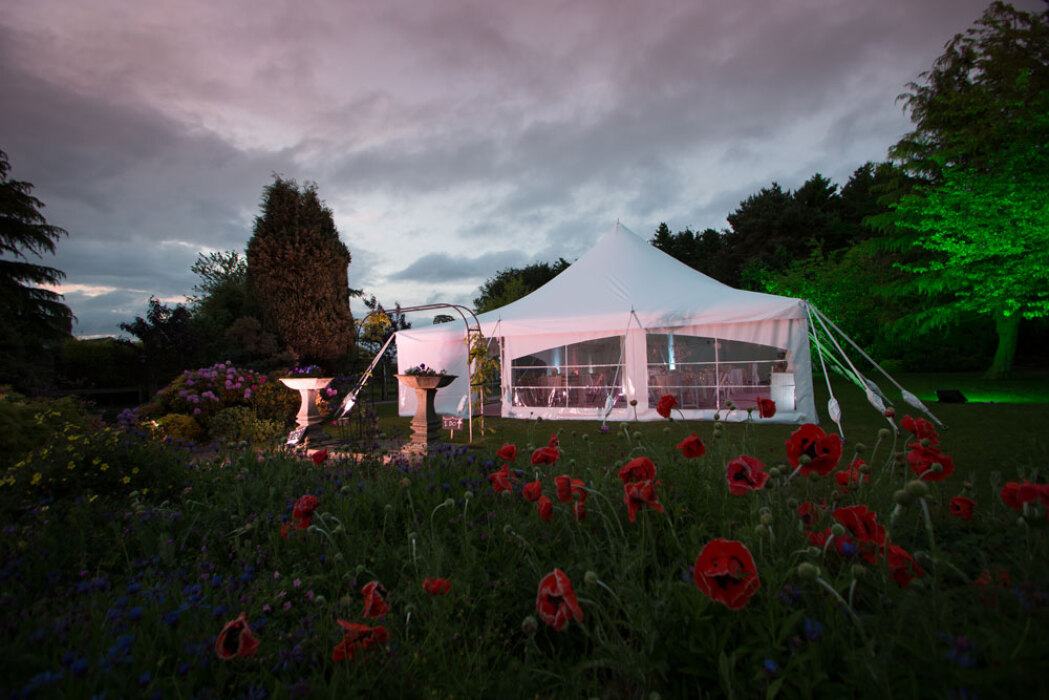

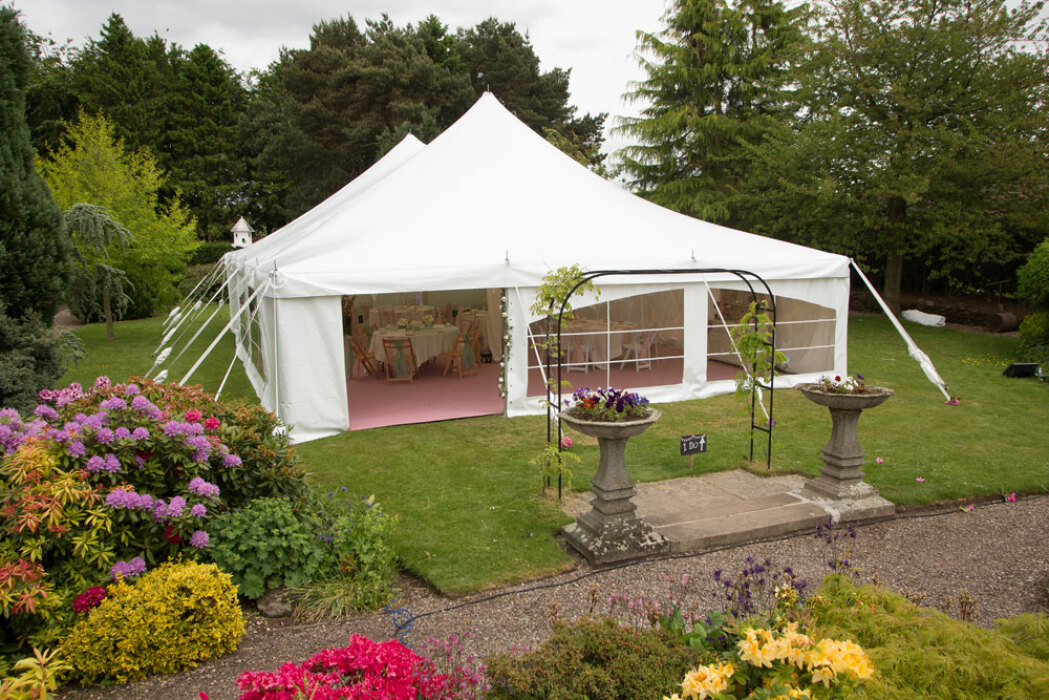

Think peg and pole marquee, think Baytex Electron. This has the elegance of a traditional pole marquee teamed with the optimum performance of a fully engineered tensile membrane. Dess it up with a romantic Baytex Silkline Lining for a stunning finish.

These beautiful marquees are fully engineered and manufactured for optimum performance in challenging weather conditions. Very quiet and stable in windy conditions.

Fabric: All Baytex Marquees have a high tech lacquer surface coating for a smooth, glossy, dirt resistant finish. Fire retardant fabric specially treated to prevent moisture wicking. Choice of Ferrari Translucent or Blockout PVC in white or a choice of colours. High frequency welded for optimum strength, fabricated in NZ.

Hardware: Alloy centre and side poles, base fittings and base rails. Supplied with ratchet strap guy tensioners for tensioning effectiveness. Baytex's own telescopic alloy centre pole for quick install is also available.

Simple Set Up: Quick and easy installation.

Image Projection: The Electron is excellent for promotional use. Project your innovative image, unique logo and identity to the public with this strong waterproof and wind resistant marquee.

Easy to Clean: The PVC surface can be readily cleaned with PH Neutral Baytex 'Sliktop'.

Manufacturing: CAD designed and computer cut for dimensional accuracy. Manufactured onsite at Baytex for the last 40 years.

Engineering Reports: Charges for initial and renewal certificates will apply.

All Electrons are supplied with PVC Roof, plain PVC Walling, poles, pegs, storm guys, roof bag, wall bag.

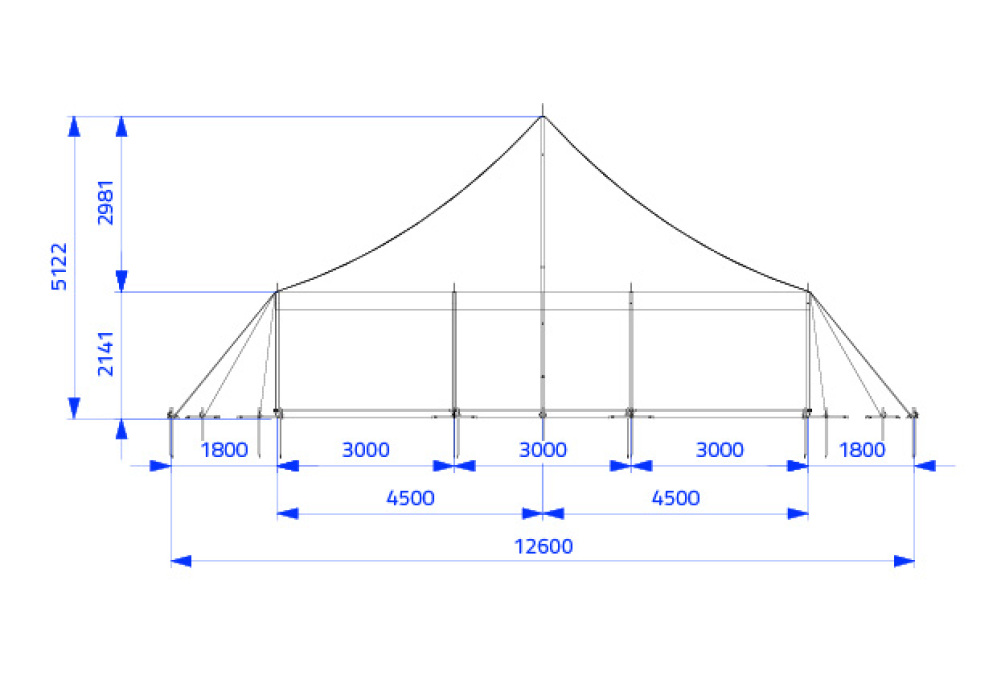

Specs and information
Number of Peaks 1
Main frame profile OD (MM) Alloy Poles
Packed weight (kg) 500
Packed volume (m3) 2.4
Longest length (m) 2.7

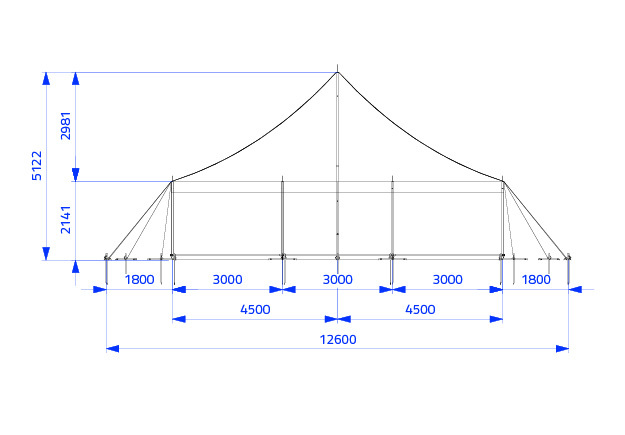

Leg height 2.1m (available on request as a 2.4m)
Apex height 5.1m
Max wind speed rating 80+ kph
Capacity Guide
Included with your marquee

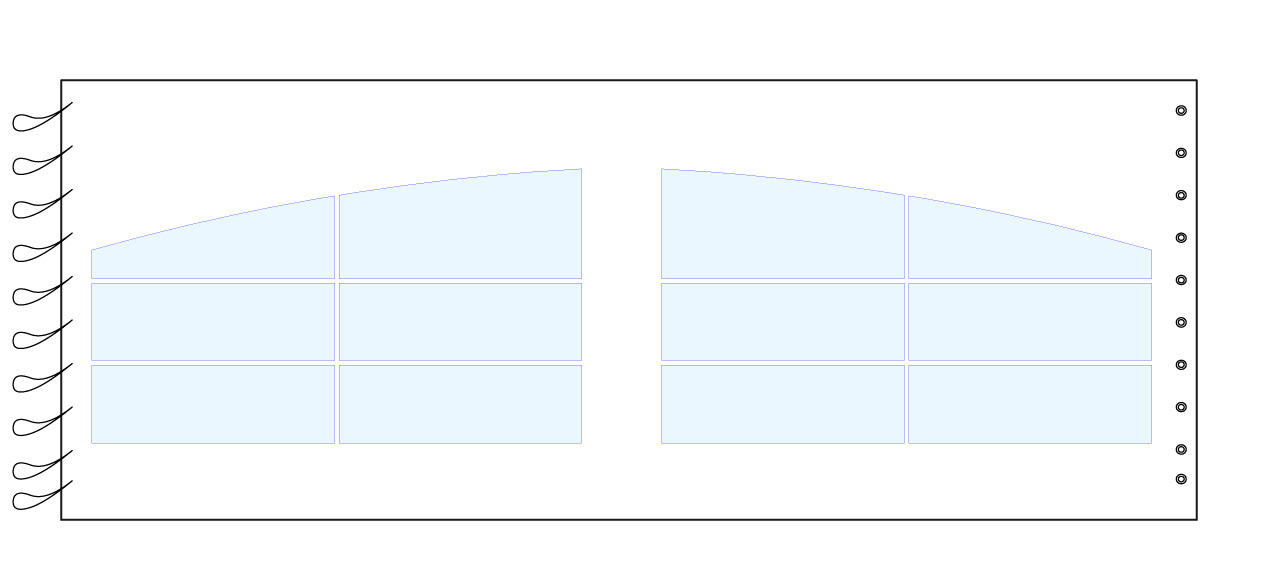

9m x 9m Roof Ends PVC (2 Piece)

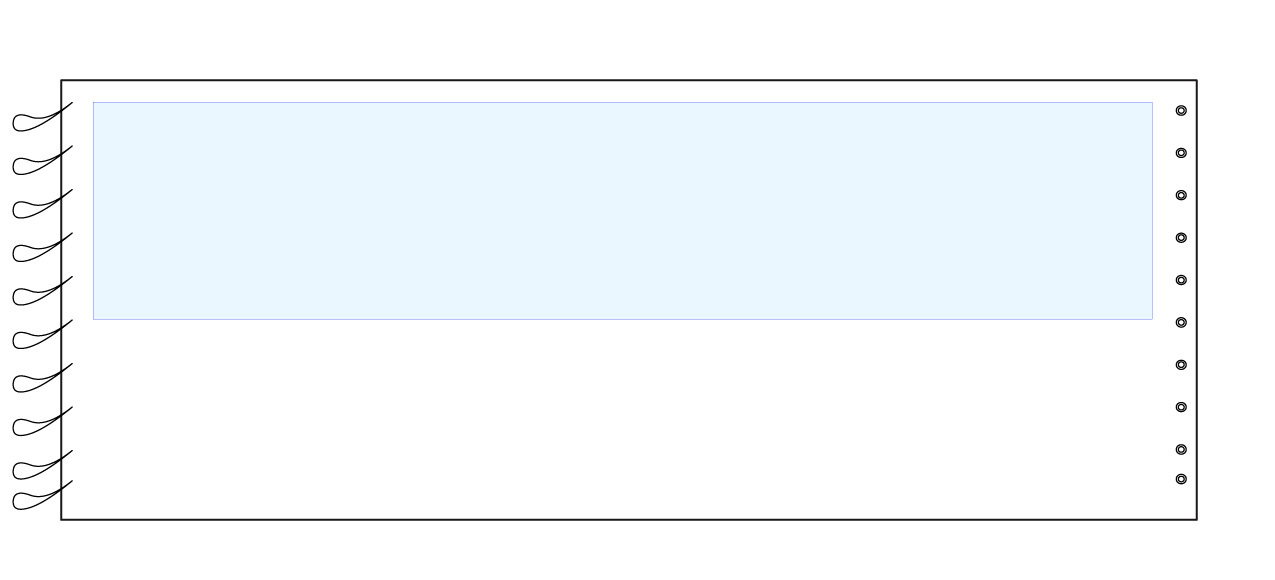

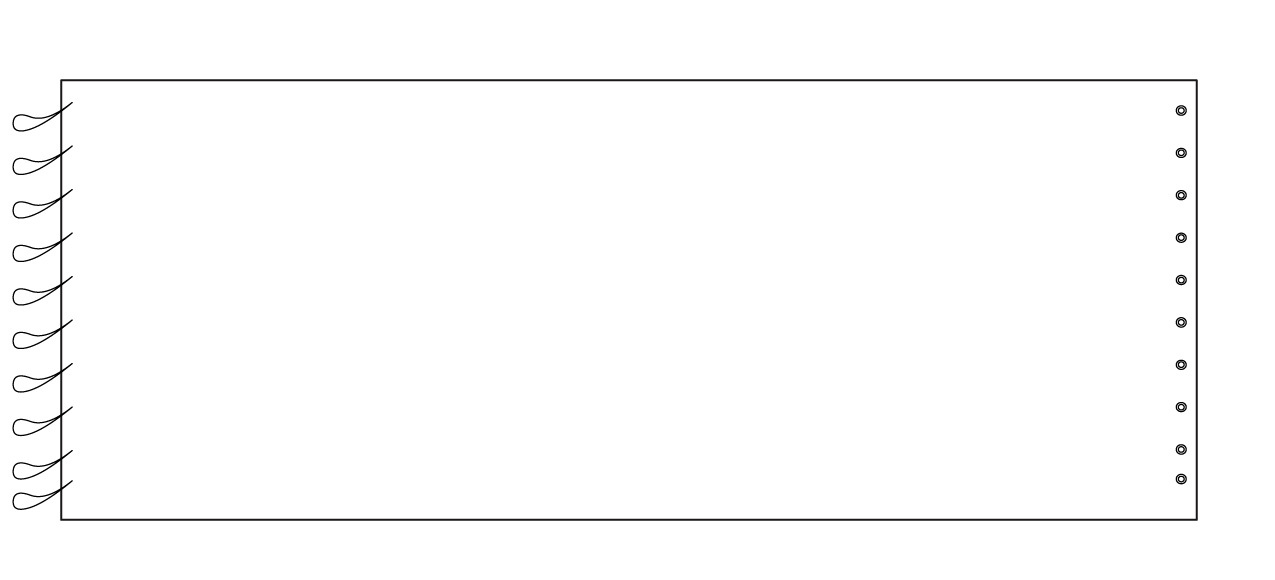

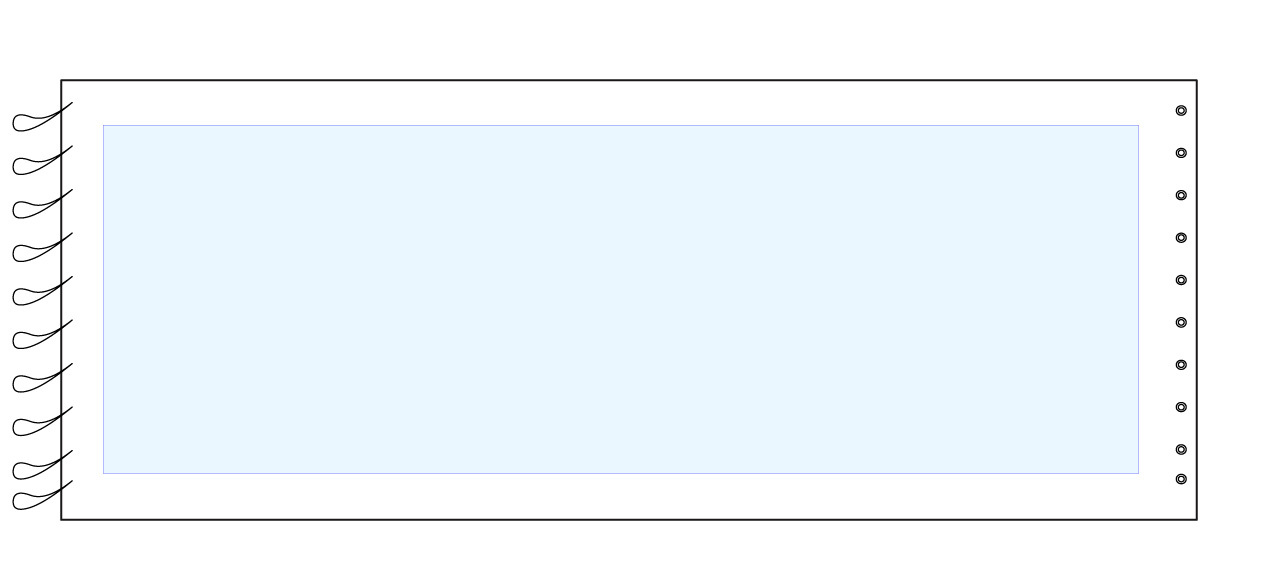

6m x 2.1m Plain Walls
Wall Bag
9m x 9m Ends Alloy Centre: 1 Alloy Centre Pole / 12 Alloy Wall Poles
Walling Bars
Marquee Pegs
Pegging Plates
