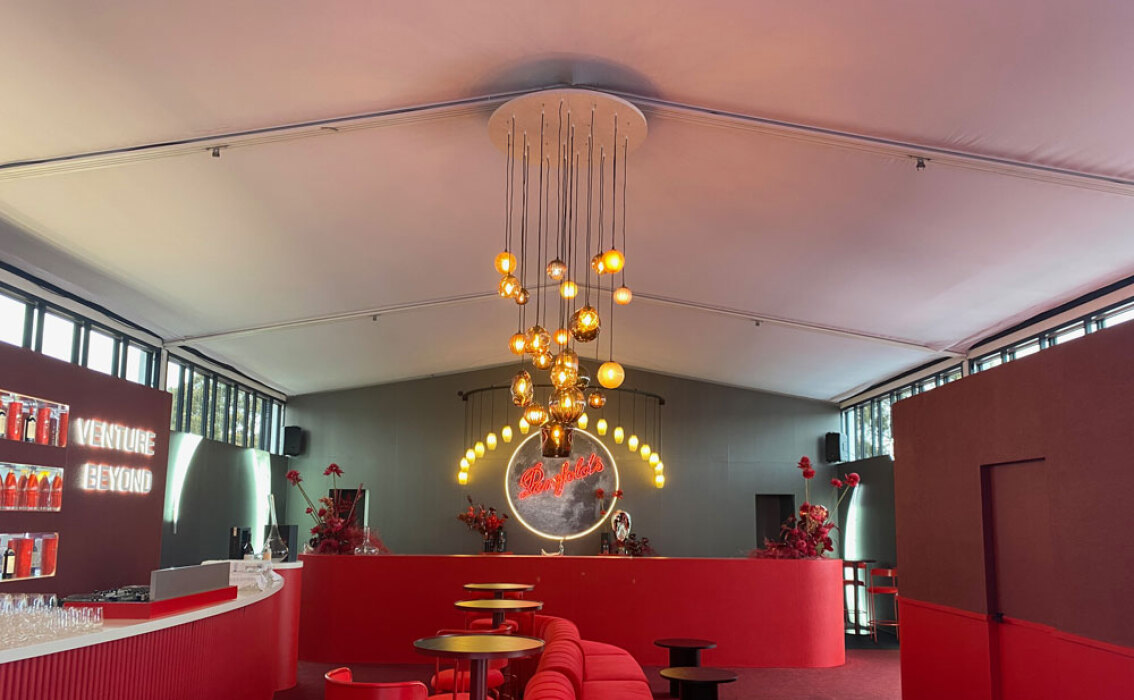

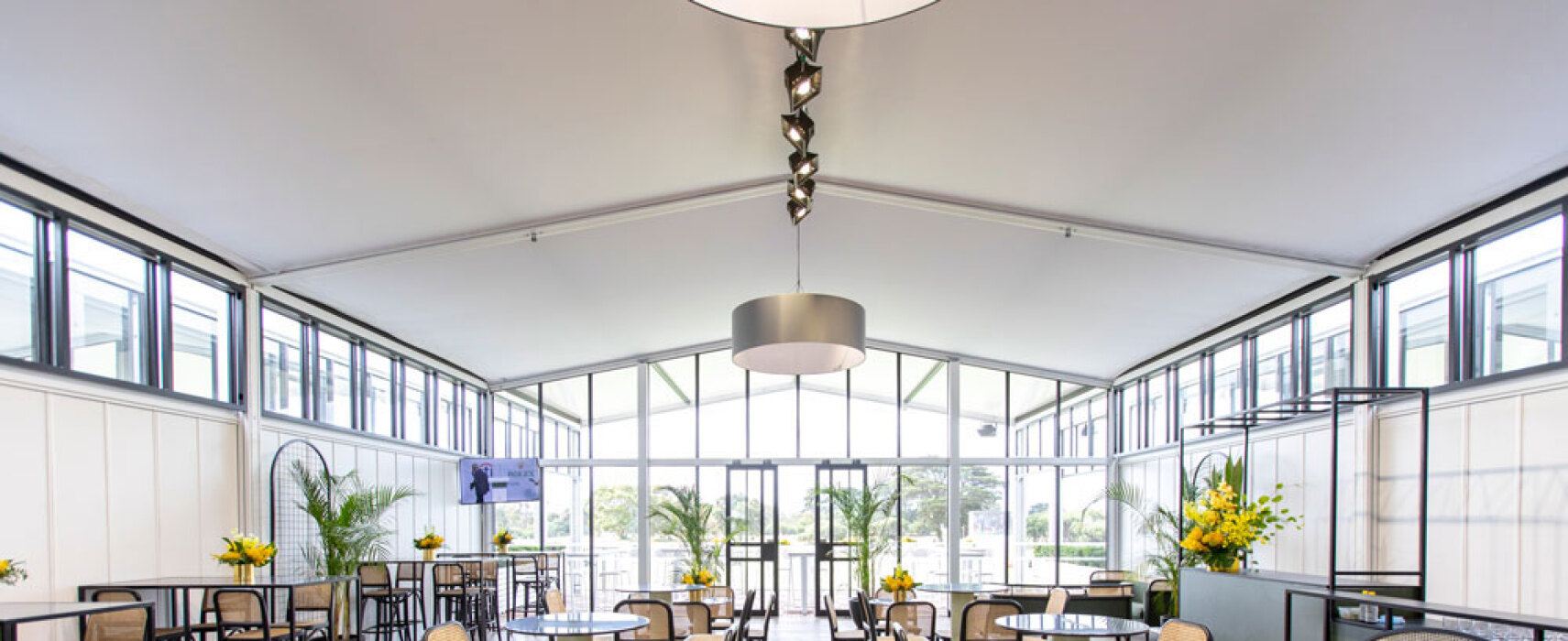

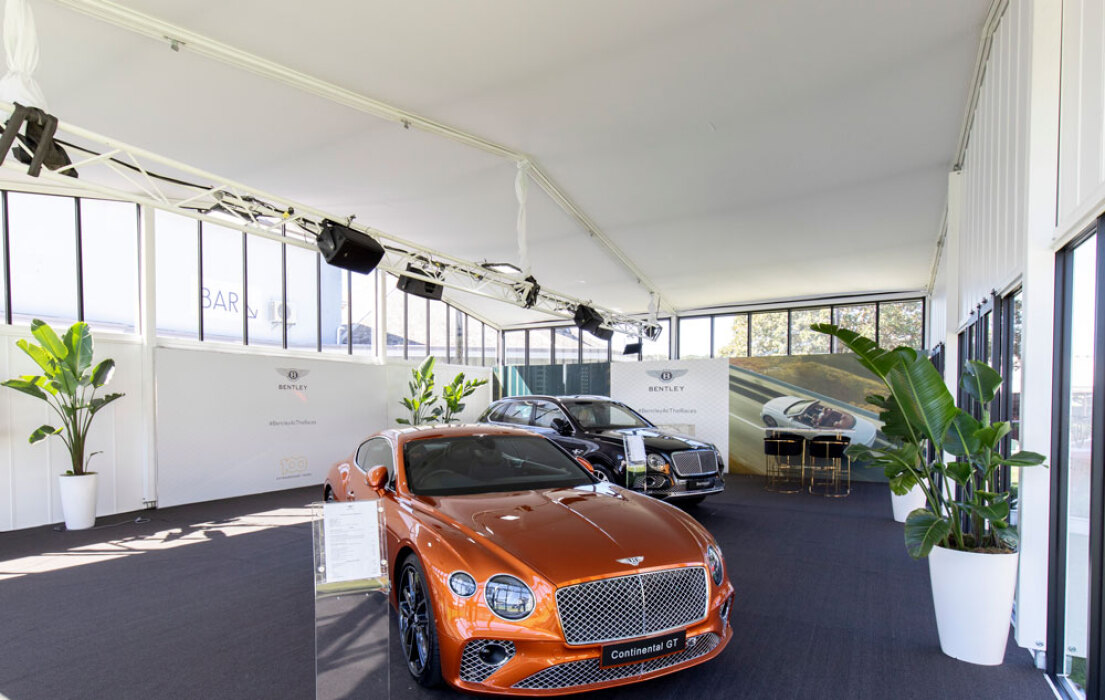

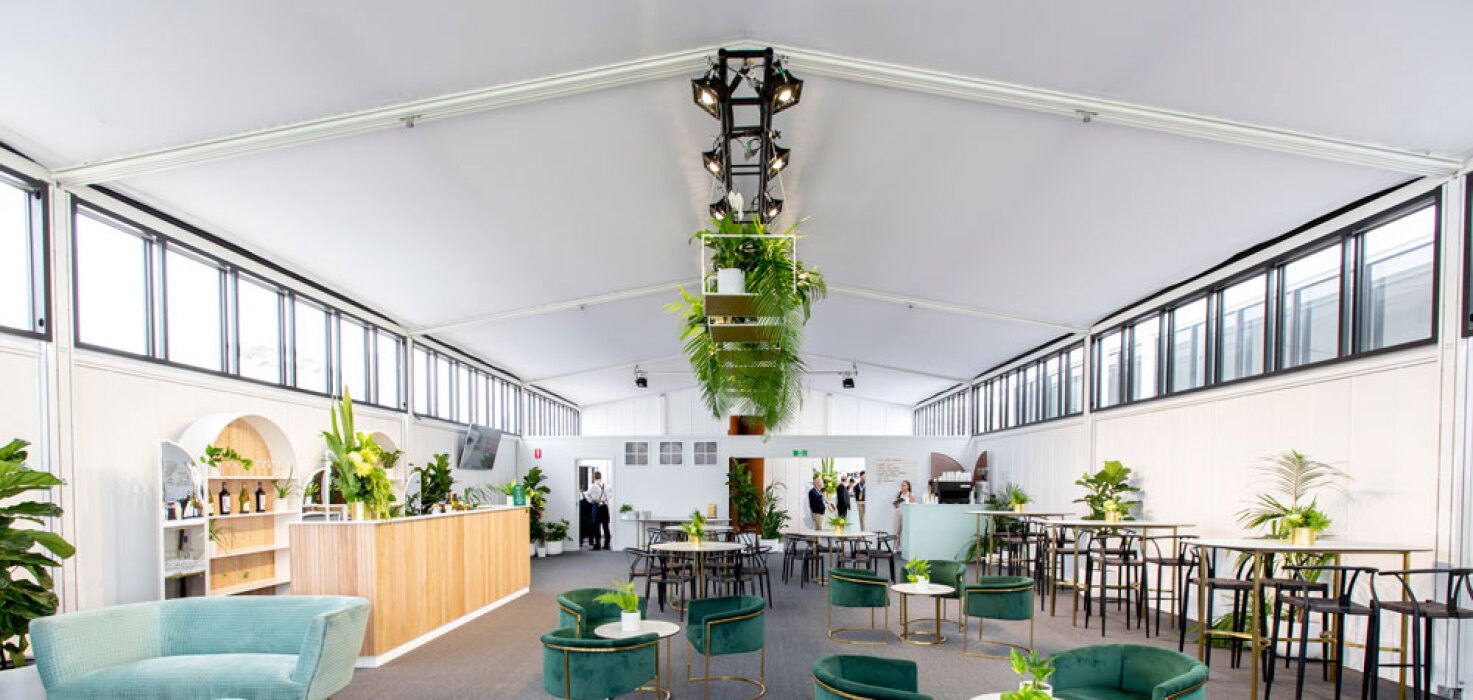

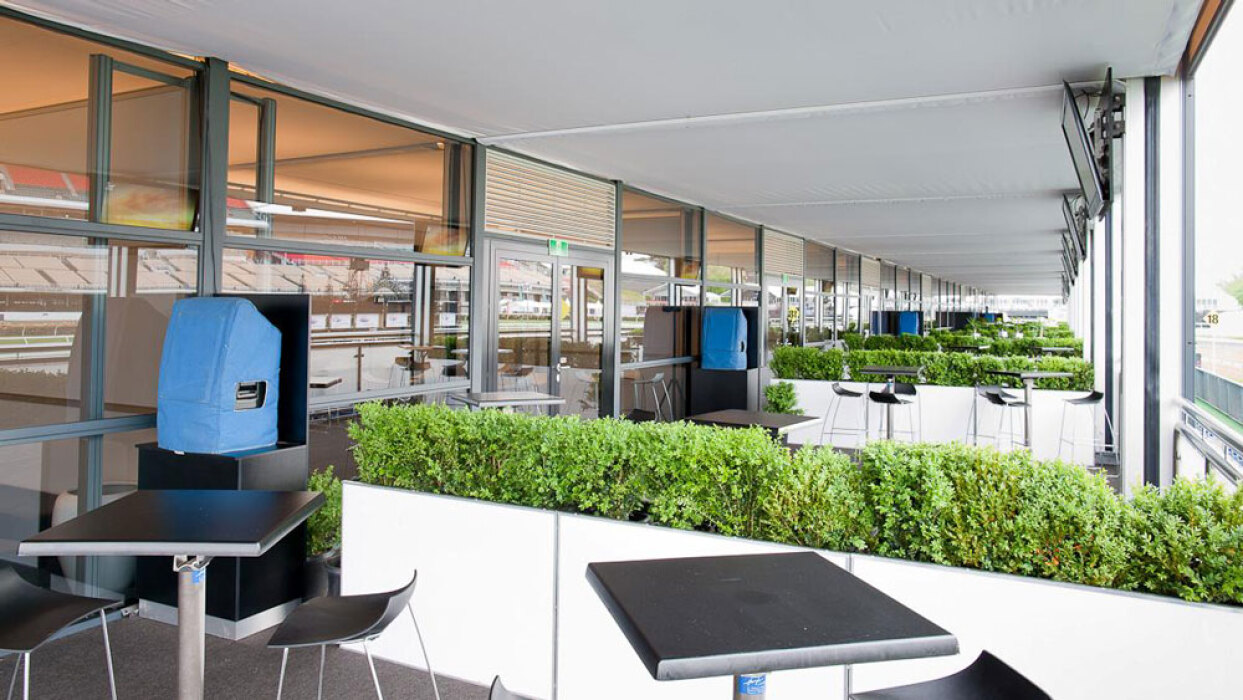

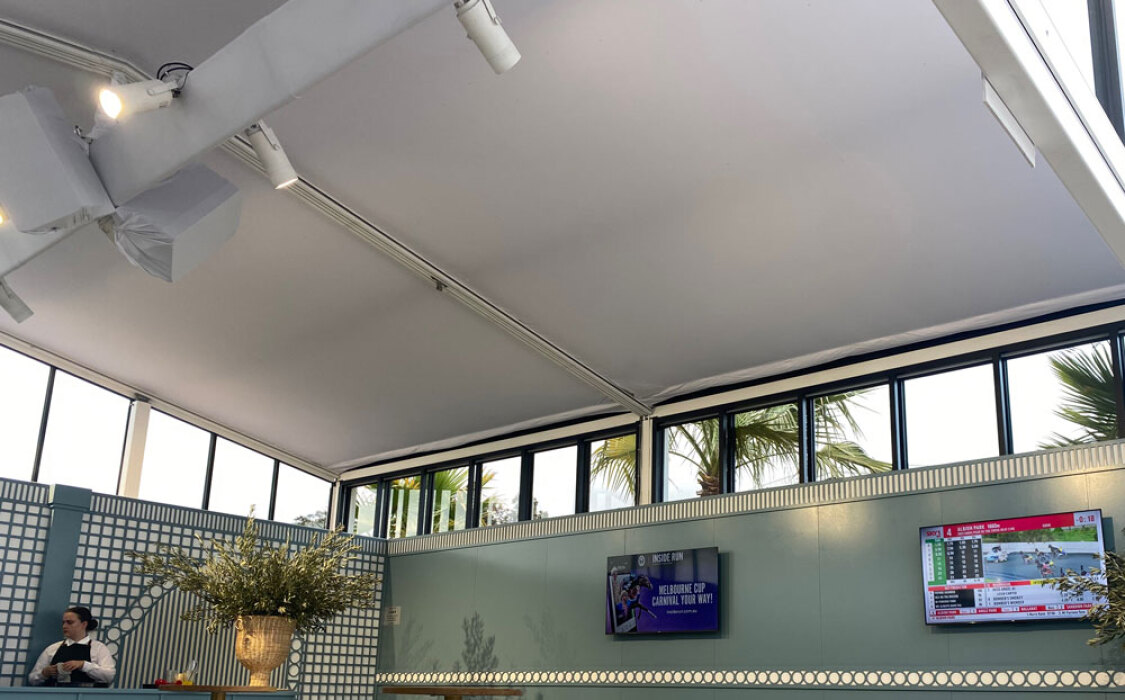

Track Liners

Manufactured to precision, these Track Liners fit accurately between portal bays for a neat taught finish.

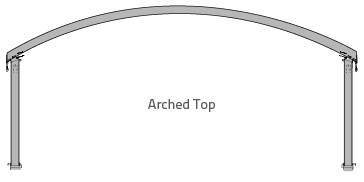

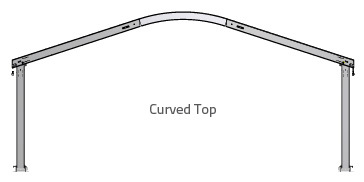

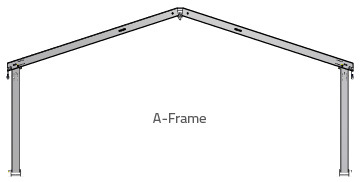

Panels are manufactured as a one piece system or as a modular system with standard panel lengths in 3m, 5m, 7.5m & 10m to expand the liner to multiple frame widths. Available for a Curved Top, A-Frame or an Arched Top structure.

Match your roof linings with optional Wall Linings, Leg Drapes or Valance Swags and elegantly dress up any venue for that special function.


Key Features

Fabric: Baytex Liners are manufactured from 100% polyester fire retardant fibre for maximum durability and easy care. All Baytex Silkline fabrics are inherently flame retardant, they have a soft finish with a beautiful silky sheen that resists hard creasing.

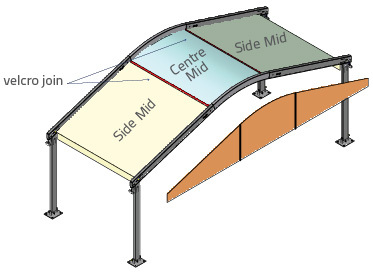

Configurations: Lining sections available as Gable Infills, Mid Sections or Gable End Starters (gable with mid attached). Available in either flat or gathered styles. Supplied with all pulleys, halyards, alloy and mounting hardware to suit your structure.

Specifications: All linings are supplied in colour coded bags. Valances are included as standard.

Simple Set Up: Load points are locked together with sister clips. A wall cord is incorporated into the eave line for hanging liner walls. Joins between are closed with continuous velcro. Installation accomplished from ground level. Concealed slots are incorporated in ridgeline for installing light fittings and hanging decor.

Manufacturing: CAD designed and computer cut for dimensional accuracy. Manufactured onsite at Baytex as for the last 40 years.
